Rim Lock
Rim Lock - Narrow Rim Lock
Material - Iron
Finish - Antique Brass
Can Latch Be Reversed? - Yes

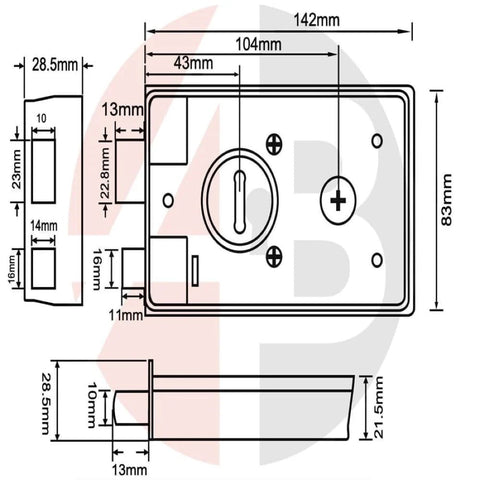

Lock Dimensions:
-
Width: 142mm
-
Height: 83mm
-
Projection: 22mm
-
104mm from spindle hole to edge of lock
- 43mm from keyhole to edge of lock
Keep Dimensions:
-
Width: 95mm
-
Height: 25mm
-
Projection: 25mm
Fixing screws are included in the package, with sizes:
2 x 55mm
3 x 30mm
Complete with 2 keys and all fixing screws, this rim lock is an excellent choice for bedrooms, bathrooms, timber doors, cottage doors, shed doors, gates, and greenhouses. Its surface-mounted design and key-operated mechanism make it ideal for rooms requiring privacy, providing secure access with ease.
Designed with convenience in mind, this reversible rim lock can be fitted to both left and right-hand opening doors. The latch can be effortlessly reversed by hand, allowing smooth operation from either side, while the keys ensure exclusive access and security.
Please be aware, the latch is reversible

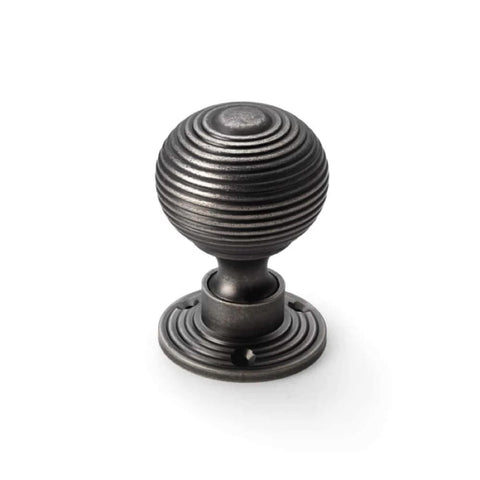

Door Knob
Dimensions:
- Knob Diameter: 50mm
- Backplates: 50mm
- Projection: 70mm
- Threaded Spindle: 110mm
Measuring at a diameter of 50mm, these solid brass beehive door knobs provide a comfortable grip while complementing various door styles. They come complete with a threaded spindle and all the necessary fixing screws, ensuring easy installation.
Versatility is key with these pewter finished door knobs, as they can be used as either rim knobs with our rim locks or as mortice knobs, offering flexibility for your specific needs. Their hollow design contributes to a lightweight feel, weighing approximately 500 grams per pair.
